Creating a Reaming Operation

You can create a Reaming operation.

Related Topics
2.5 to 5-Axis Drilling Operations

  1. Activate the Manufacturing Program and click Reaming in the Axial Machining Operations toolbar.

    A Reaming entity is added to the Manufacturing Program.

    The Reaming dialog box appears directly at the Geometry tab . This tab includes a sensitive icon to help you specify the geometry. Areas of the icon are colored red indicating that this geometry is required.

  2. Still in the Geometry tab.

    See Selecting Geometry

    1. Specify the geometry of the hole or hole pattern to be machined: select the red hole depth representation then select the pattern of 10 holes. Double-click to end your selections.

      The sensitive icon is updated with the following information:

      • depth and diameter of the first selected feature
      • hole extension type: through hole
      • number of points to machine.


    2. Select the axis representation in the sensitive icon to invert the tool axis direction, if required.

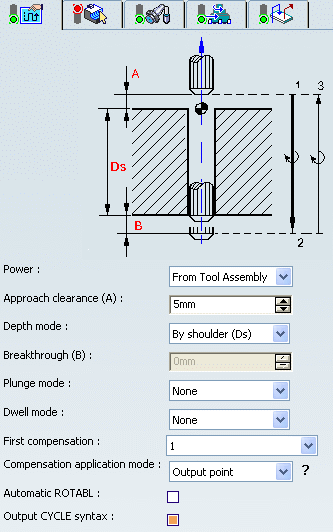

  3. Select the Strategy tab to specify the following parameters:

    • Approach clearance (A)
    • Depth mode: By shoulder (Ds)

      Note: The depth value used is the one specified in the Geometry tab.

    • Dwell (in seconds)
    • Compensation number depending on those available on the tool.

    The other parameters are optional in this case.



  4. Go to the Tool tab to select a tool.

    See Specifying a Tool Element in a Machining Operation

  5. Select the Feeds and Speeds tab to specify the feedrates and spindle speeds for the operation.

    Note: In our example, the tool motion is at:

    • Motion at machining feedrate from 1 to 2
    • Dwell for specified duration
    • Retract at retract feedrate from 2 to 3.

  6. Select the Macros tab to specify the desired transition paths.

    See Defining Macros on Axial Machining Operations

  7. Click Tool Path Replay to check the validity of the operation.

    See Replaying the Tool Path


    • The tool path is computed.
    • A progress indicator is displayed.
    • You can cancel the tool path computation at any moment before 100% completion.

    Note: For material removal simulations, Boring Bars are not supported for Photo mode and are not collision checked in Video mode.

  8. Click OK to create the operation.

    Note: If your PP table is customized with the following statement for Reaming operations:

    CYCLE/REAM, %MFG_TOTAL_DEPTH, %MFG_FEED_MACH_VALUE,
&MFG_FEED_UNIT,%MFG_CLEAR_TIP, DWELL, %MFG_DWELL_REVOL

    A typical NC data output is as follows:

    CYCLE/REAM, 25.000000, 500.000000, MMPM, 5.000000, DWELL, 3

    The parameters available for PP word syntaxes for this type of operation are described in the NC_REAMING section of the Manufacturing Infrastructure User's Guide.

  9. Click Edit Cycle to edit or choose output syntaxes.
