Defining Operations and Operation Parameters of Transformation System

You can define operations and operation parameters of a Transformation system.

This task shows you how to:

Before you begin: Open a data to which scope is already assigned, and then select the desired Production System Simulation workbench.
Related Topics
About Systems
Defining Operations and Operation Parameters of Source System
Simulating Scenarios
Defining Random Number Stream for Time Distribution

Define Operation

You can define the Transformation system operations in either Live System Editor or PPR Context.

  1. Right-click Transformation system in Live System Editor or PPR Context and select Define Operations .

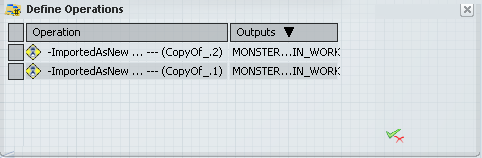

    The Define Operations dialog box appears.

  2. Click Close to close the dialog box.

Add/Remove Operation

You can remove and add a Transformation operation.

  1. Select a Transformation operation that you wish to remove.

  2. Click Add/Remove button to remove an operation.

    The selected Transformation operation is removed.

  3. Select a process in PPR Context and click Add/Remove button to add a Transformation operation.

    A Transformation operation gets created with default parameters and the selected process is linked to the created Transformation operation.

Show and Hide Column

You can show and hide the columns.

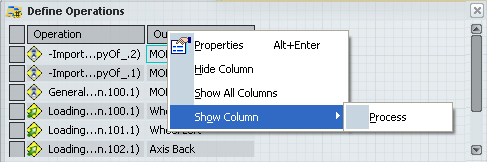

  • Right-click column header and select Show Column > Process in the contextual menu of Define Operations dialog box.

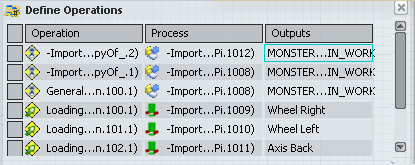

    The Process column appears in the Define Operations dialog box.

    See Contextual Menu



Edit Transformation System Operation Parameters

You can edit and view the Transformation system operation parameters in Define Scenario Input Parameters dialog box.

  1. Click Edit Scenario Inputs in Edit Scenario sub-toolbar and select a Transformation system.

  2. Optional: Modify the parameters.
