Grouping Annotations Automatically

You can group annotations automatically.

Important:

  • You can select as many annotations as you want.
  • Selected annotations must associated with the same geometrical elements.
  • According to the standard annotations are grouped with a specific order.

Before you begin: Open an existing 3D shape.
Related Topics
Grouping Annotations During Creation
Grouping Annotations Manually

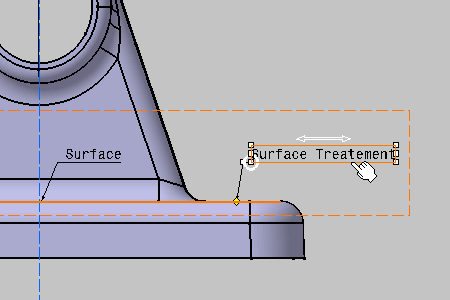

  1. Select Surface Treatment as the first annotation to be grouped.

  2. Multi-select Surface as the second annotation to be grouped.

  3. Click Automatic Grouping in Grouping toobar.

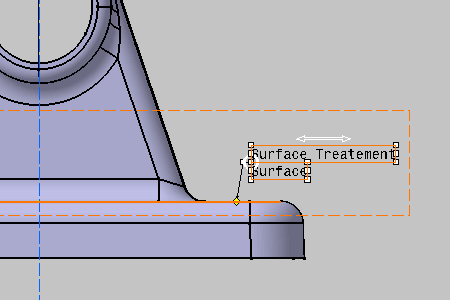

    Annotations are grouped.
