Plane Systems Dialog Box

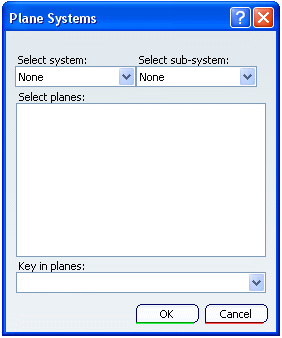

The Plane Systems dialog box appears when you select Select Reference Plane in the contextual menu. For more information, please refer to About Accessing the Reference Plane Browser. The Plane Systems dialog box lists the reference planes defined in the active structure system.

Related Topics
Reference Plane Browser


Select system
The Select system box lists the plane systems defined in the active structure system.
Select sub-system
The Select sub-system box lists the sub-plane systems defined under the plane system of the active structure system.

Notes:

  • The default filters are set to None. No reference plane is listed in the Select planes box, and no sub-plane system is available in the Select sub-system list.
  • The Select system filter can be set to All. All reference planes are listed in the Select planes box, and all sub-plane systems are available in the Select sub-system list.

Select planes
Select the required planes in the Select planes box.

Once the selection is made in the Select system and Select sub-system, planes available for selection appears in this box.

Key in planes
You can key in planes in the Key in planes box. You can key in formulas in this box for quick selection. For more information, refer to More About Using the Formulas
