Diagnostic Colors Dialog Box

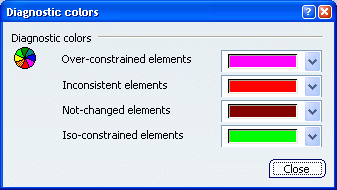

The Diagnostic Colors dialog box allows you to configure diagnostic colors for over-constrained elements, inconsistent elements, not-changed elements and iso-constrained elements. This dialog box appears when you click Configure for the Activate geometries' diagnostic option on the Display tab.

It contains controls for configuring diagnostic colors.

Related Topics
Display


Diagnostic colors

Over-constrained elements
Select a color for over-constrained elements (i.e. elements for which too many dimensions were applied to the geometry).
Inconsistent elements
Select a color for inconsistent elements, i.e. elements for which at least one dimension value needs to be changed.

Note: This is also the case when elements are under-constrained and the system proposes defaults that do not lead to a solution.

Not-changed elements
Select a color for not-changed elements, i.e. elements for which some geometrical elements are over-defined or not-consistent. As a result, geometry that depends on the problematic area will not be recalculated.
Iso-constrained elements
Select a color for iso-constrained elements, i.e. elements for which all the relevant dimensions are satisfied. The geometry is fixed and cannot be moved from its geometrical support.
