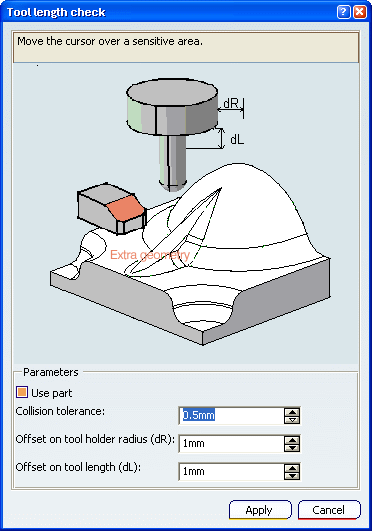

- Extra geometry
- In the sensitive icon, select additional geometry to the part in the Machining Operation where the tool
path was computed.
Additional geometry may be a face or a clamp that you would rather
avoid using in the computation and that is not defined in the
Machining Operation.
- Use part
- Uses the part you defined in the Machining Operation
to compute the collision points.
- Collision tolerance
- Discretization distance to check for collision between the tool
and the part.
- Offset on tool holder radius (dR)
- Safety distance for the tool holder radius to avoid collision
between the holder and the part.
- Offset on tool length (dL)
- Safety distance for the tool holder length to avoid collision
between the holder and the part.
|
