Creating a Interaction Skill

This allows you to create a interaction Skill.

Before you begin: Have a manikin in your scenario.
Related Topics
Inserting/Creating a Human Interface

  1. Click Creating an Interaction Skill .

  2. Select the Manikin from the 3D viewer.

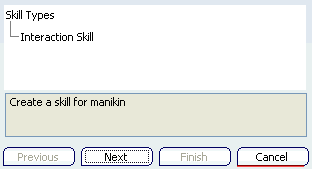

    The Skill dialog box appears.



  3. Click Interaction Skill, Next.

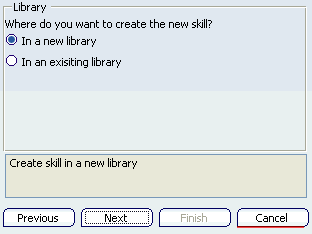

    The dialog box changes to the Library section.

  4. Click In a new library, Next.

    Note: If an existing library was selected. this would bring up the Library search to find a existing library. Selecting the library you want to add the skill. This brings you to the Interaction Skill Editor dialog box.

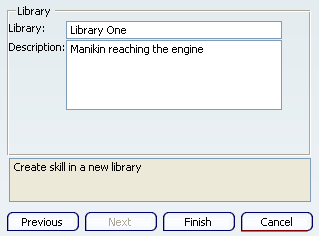

  5. Type a Library name, or keep the default. and add a description. .

    Name this Library One, and type in a description.

  6. Click Finish.

    The Interaction Skill Editor dialog box.

    See: Interaction Skill Editor Dialog Box

  7. Click a Manikin Segment.

    The manikin segments snaps to the interaction skill.

  8. Click Record.

  9. Click OK

    This stores the new interaction skill in the database.
