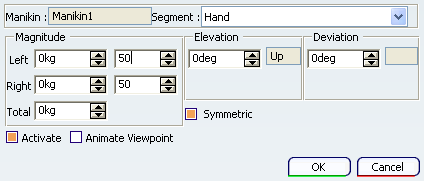

Manikin
- Manikin
- This shows the manikin you have selected.
Segment
- Segment
-
This allows you to select various sections of a manikin. Depending on the selection, sections of the dialog box is grayed out, as it is not required.
Once activated, the applicable commands for this section is available.
- Trunk
- Transpelvic
- Hand
- Forearm
- Arm
- Thigh
- Leg
- Foot
Magnitude
- Left, Right, Total
- This is the magnitude (force) for the left and right hand.
Elevation
- Elevation
- The elevation and deviation is for carrying, pushing/pulling,
and lifting/lowering.
Deviation
- Deviation
- The elevation and deviation is for carrying, pushing/pulling,
and lifting/lowering.
Activate
- Activate
- This shows the manikin you have selected.
Animate viewpoint
- Animate viewpoint
- Activating this alters the 3D geometry window.
Symmetric
- Symmetric
- By default the Symmetric checkbox is active and the
specified load is applied on both hands with the same orientation.
When this checkbox is deactivated, different elevations and
deviations can be applied to the left and right hand separately.
|
