Generating Dimensions in One Shot

You can generate dimensions in one shot from the constraints of a 3D part.

Before you begin: Open a generative drawing representation. Go to Tools > Options > Mechanical > Drafting > Generation tab, and select the Analysis after generation check box.
Related Topics
About Dimension Generation
Analyzing Generated Dimensions

  1. Click Generate Dimensions in the Generation toolbar (Dimension Generation sub-toolbar).

    The dimensions are automatically generated on the front view, which in this particular case, is the only view in the drawing.

    Important: In the case of drawings with several views, by default, dimensions are generated on all the views. To generate dimensions on specific views, simply select these views prior to generating dimensions. The selected views will be automatically highlighted, and dimensions will be generated on the selected views only.

    The image below shows the drawing view with generated dimensions and one selected dimension:

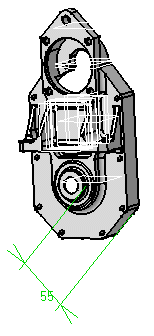

    The image below shows the 3D part displaying the dimension corresponding to the dimension selected on the drawing view:



    The Generated Dimensions Analysis dialog box showing the dimensions and constraints generated for each part (in this case, there is only one) is automatically displayed. Refer to Analyzing Generated Dimensions for more information.

  2. Click OK to close the dialog box.
