Creating Note Object Attribute From a Text

You can create a Note Object Attribute which contains a text only.

Before you begin:
  • Open an existing 3D shape.
  • Check the option allowing you to create a Note Object Attribute, see Note Object Attribute.
Related Topics
About Note Object Attributes
Note Object Attribute Reference Dialog Box

  1. Click Note Object Attribute

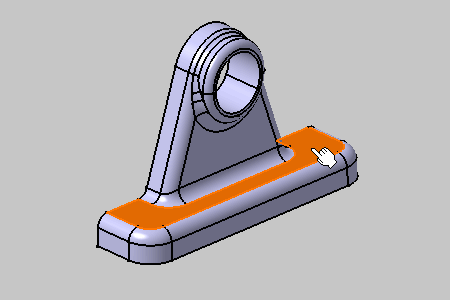

  2. Select the surface as shown on the part.



    The Note Object Attribute Reference dialog box appears.

    Important:

    This scenario illustrates the creation of a note object attribute by selecting geometry, but you can also select any Part Design or Generative Shape Design feature in the specification tree. In this case, the created annotation will not be attached to the selected feature, but to its geometrical elements at the highest level.

  3. Enter the following information:


    • The type of the Note Object Attribute: Note Object Annotation from a Text
    • The text: 3D Annotation
    • A Hidden text: This is a Note Object Annotation created from a text

  4. Click OK in the Note Object Attribute Reference dialog box.

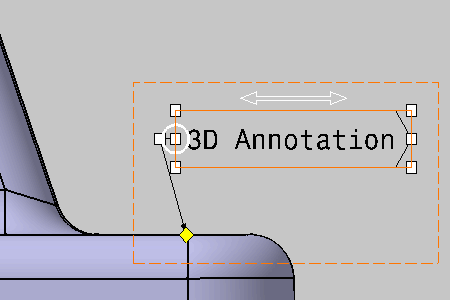

    The Note Object Attribute is created.





    The Note object Attribute default name in the Specification Tree is retrieved from its type.

    Tip:

    Modify the type name does not modify the feature name.

    To modify the feature name:


    • Right-click the name and select the Properties....
    • In the Feature Properties tab, modify the Feature Name.
