Standard Properties

The Standard lets you modify standard properties for Annotation Set.

Presentation Standard



Displays the standards of the existing annotation set. Change this standard cannot be undone.

Important:
  • To update the standard contained in the annotation set, reselect the same standard name in the combo list. A standard update cannot be undone.
  • This properties tab is the same as the one in 2D Layout for 3D Design. Change the standard in Functional Tolerancing & Annotation will affect 2D Layout for 3D Design, and vice-versa.
  • When you change the standard through Tolerancing Standard, the new standard is not applied automatically to existing annotation set in session.

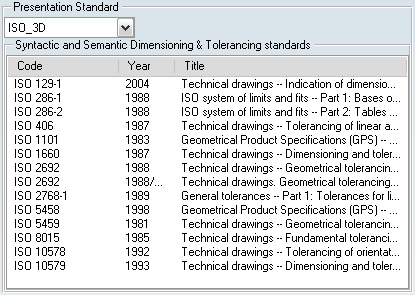

Syntactic and Semantic Dimensioning & Tolerancing standards
Displays the list of standards in use in the Annotation Set.
