Exploring Folders in VPM Navigator

The Explore command enables you to select a folder (root or non-root) and open it in a new window. This command can be selected from the contextual (right-click) menu, the Folder Navigate toolbar, or the Edit menu. In the Folder Editor window, you can use these commands in the 3D representation of the folder structure, or in the folder structure tree.

  1. Navigating on Folders Search for a folder or a folder structure using PLM Access > Advanced Search . Refer to the Semantic Search document for more information on how to search.

  2. From the search results list, right-click a folder and select Explore .

    Note: You can explore multiple folders from the search list results.

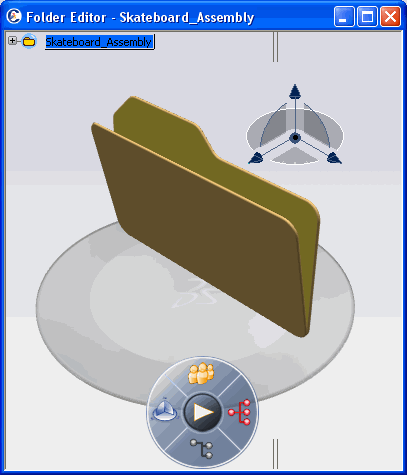

    The selected object is displayed in a new Folder Editor window.



    Important: If a non-root folder is selected, it will be explored in context of its root folder.



    The icon to the left of the root folder is used to show that the object in the tree is not fully expanded (it is expanded such that the selected object is displayed). Click to fully expand the object in the tree. You can also customize general settings when Open.
