Probing Corners

You can perform a Probing operation on corners, add your own probing parameters and create your own tool bars with the Probing operations you have defined.

Related Topics
Probing Operations
Dealing with Invalid Faces

  1. Activate the Manufacturing Program and click Corner Probing in the Prismatic Machining Operations toolbar.

    A Corner Probing entity is added to the Manufacturing Program. The Corner Probing dialog box opens directly at the Geometry tab page . This tab includes a sensitive icon to help you specify the geometry. Areas of the icon are colored red indicating that this geometry is required.

  2. Still in the Geometry tab:

    See Selecting Geometry

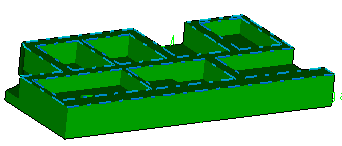

    1. Click the red area in the sensitive icon and select the part in the authoring window.
    2. Double-click anywhere in the authoring window to confirm your selection and redisplay the dialog box.

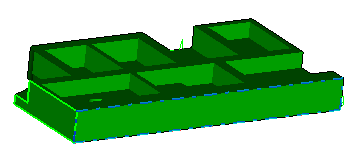

    3. Similarly, click Face in the sensitive icon and select the faces that limit the corner in the authoring window.

      A corner symbol appears to visualize how the corner can be processed. If this information is not correct.

      Click the wings of the corner until they show the correct way.

    4. Click Top and select the top plane.

  3. Select theStrategy tab and specify the strategy and user parameters:

  4. Go to the Tool tab to select a tool.

    See Specifying a Tool Element in a Machining Operation

  5. Select the Feeds and Speeds tab to specify the feedrates and spindle speeds for the operation.

  6. Select the Macro tab to specify the desired transition paths.

  7. Click Tool Path Replay to check the validity of the operation.

    See Replaying the Tool Path


    • The probing tool path is computed.
    • A progress indicator is displayed.
    • You can cancel the tool path computation at any moment before 100% completion.

  8. Click OK in the Tool Path Replay dialog box, and again in the main dialog box.

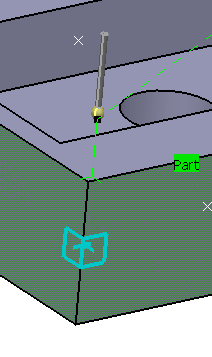

    The probing tool path is created:
