Using the Relations Panel

When you select a resource, the Relations panel displays all the relations with the other objects in the current session. The Relations panel is a floating immersive panel that can be fixed on the screen at chosen size and position or it can be moved around like a dialog box. The size and position of the panel are saved between sessions.

Related Topics
Generic PPR Commands Toolbar

  1. Select a resource node in the tree.

  2. Click Launch Relations Panel .

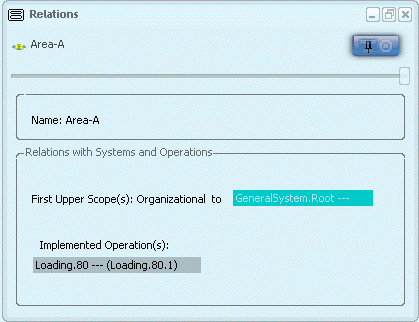

    The Relations panel appears. It shows the relations of the selected resource with systems (scope links) and implement links to operations

Notes:

  • To fix the position of the panel on the screen, select the Dock button at the top of the panel.
  • To allow the panel to be moved around the screen, select the Undock button at the top of the panel.
  • To close the panel, select the button at the top of the panel.
  • To adjust the transparency of the panel, use the slider at the top of the panel.
  • The panel can be iconized or used as a non-immersive dialog box by using the buttons in the title bar.
  • The panel can be customized to your needs using XML files, which define which data are shown in the panel. For more information, see PPR Editor User's Guide: Relations Panel Customization.
