Extrude the Connector

This is the second step in the creation of the connector. You are going to extrude the face of the connector profile.

Related Topics
Rotate the End

Click Play to watch the video:

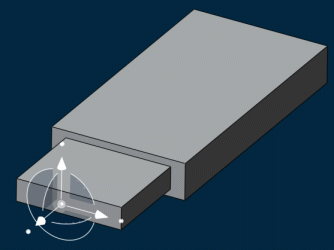

  1. Select the face of the connector profile you have just drawn.

  2. Drag perpendicular axis of the Robot away from the body.

  3. Click the current value and type 12.

  4. When finished, click the background.
