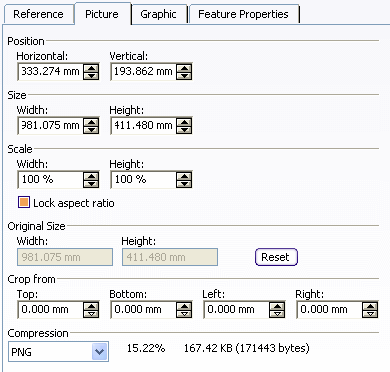

Picture Tab

Define the horizontal positioning on the sheet, taking the bottom left corner of the image into account.

Define the vertical positioning on the sheet, taking the bottom left corner of the image into account.

Define the ratio between the original width and the represented width.

Define the ratio between the original height and the represented height.

When you modify the size, the scale is automatically modified at the same time.

Define the width in percentage of the picture.

Define the height in percentage of the picture.

Select this check box to preserve the ratio between width and height when using the corner manipulators. However, when using the border manipulators, the picture can be distorted.

Define the original width of the picture in millimeters.

Define the original height of the picture in millimeters.

Click this button to reset the size of the represented picture to the size of the original picture.

Define the top part of the picture to be hidden.

Define the bottom part of the picture to be hidden.

Define the left part of the picture to be hidden.

defines the right part of the picture to be hidden.

Choose a compression format from the combo box.

None

Does not compress the picture - it will keep its original size.

PNG

Compresses the picture without loss in quality.

Important: The PNG format is used by default when inserting a picture whatever its original format.

JPEG

Compresses the picture with a loss in quality.

Displays the compression rate in percentage and the size of the picture in bytes according to the chosen format once it is saved on your hard drive. The compression rate and picture size vary according to your picture.
