2D Component Instance Tab

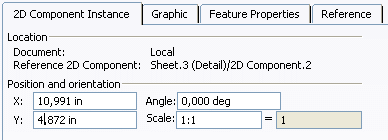

The 2D Component Instance tab in the Properties dialog box lets you modify the position and orientation of the 2D component. It appears when you right-click a 2D component instance and then select Properties.

This tab contains controls for:



Location

Document

Indicates the instance location.

Reference 2D Component

Indicates the location of the reference 2D component.

Position and orientation

X

Specify the X coordinate of the 2D component instance.

Y

Specify the Y coordinate of the 2D component instance.

Angle

Define the angle to apply to the 2D component instance..

Scale

Define the scale of the 2D component instance.
