Managing Interactive Views

You can quickly access standard views (top, bottom, front, back, right and left) using a manipulator.

  1. Click View Selection .

    Tip: You can also access this command by pressing F4.

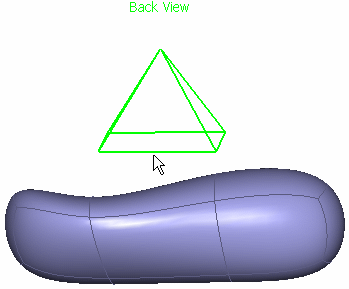

    A pyramid-shaped manipulator appears, along with an information about the view position. Here we selected the back view:

  2. Move the mouse to change the manipulator position.

  3. Once the desired view is pre-selected, click in the 3D geometry to change it accordingly.



    Tip: When the view is near a predefined-view, you cannot select the opposite view.
