Segment Coloring for RULA Analysis

This analyzes and visually reviews the postures of the manikin that are not fulfilling the RULA requirements in the 3D Geometry window.

This enhances the analysis performance before going into a more detailed analysis of some specific postures.

Before you begin: Have a Manikin in your scenario.
Related Topics
Activating the Manikin Coloring Properties

  1. In the Human Activity Analysis workbench, with a manikin inserted, move the manikin's segments in a similar position.

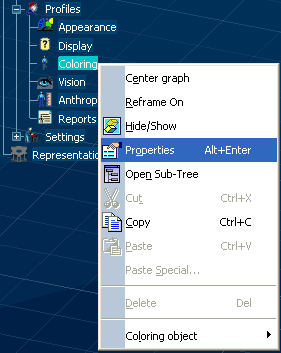

  2. Right-click on the Coloring in the Profiles directory in the PPR tree, and select Properties.

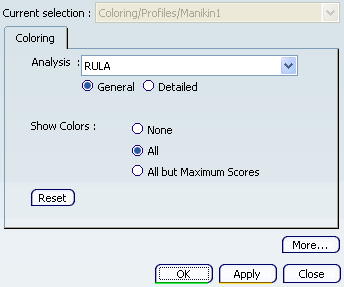

  3. In the Properties dialog box, select RULA and All.

  4. Click Apply, OK.

  5. The RULA information is transposed onto the Manikin.

  6. See About the RULA Analysis for the correspondence between a score in the analysis and the body part to be colored.
