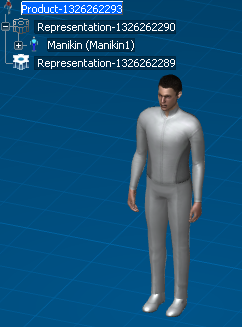

Creating a Manikin or Forearm from PLM Access

This describes how to create a forearm/hand model from the PLM Access.


Before you begin: Verify that you are in the Human Builder workbench, and have a Product created.
Related Topics
Manikin tab in the Product Dialog Box
  1. Select PLM Access from the Main Menu bar.

  2. Click New.

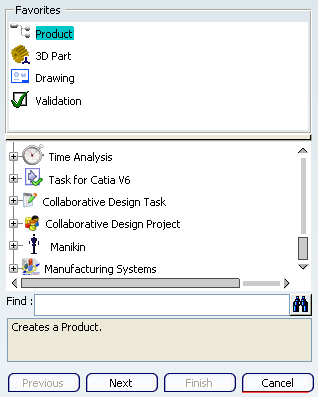

    The dialog box appears.



  3. Click Manikin after scrolling down to the bottom of the list.

  4. Click Next button.

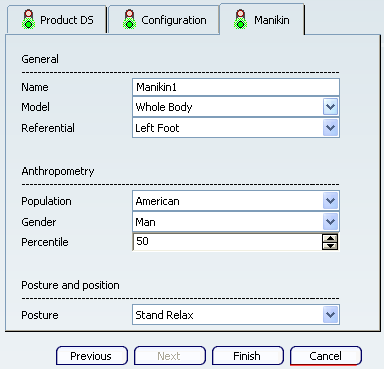

  5. Select the Manikin tab.



  6. Click Finish after selecting your preferences.
