Copying Graphical Properties

You can copy the graphical properties of a text to other existing texts.

Applicable for:

  • Text.
  • Datum.
  • Datum Target.
  • Geometrical Tolerance.

Before you begin: Open an existing 3D shape containing texts.
Related Topics
Text Graphical Properties

  1. Select the text which graphical properties which are to be modified.

  2. Click Copy Object Format

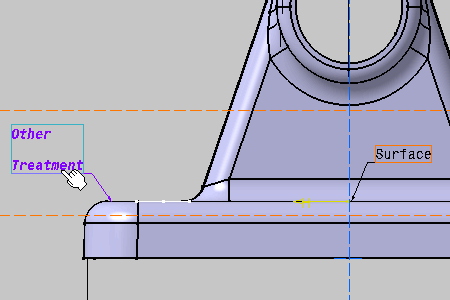

  3. Select the text to be used as the graphic reference for the texts you selected.

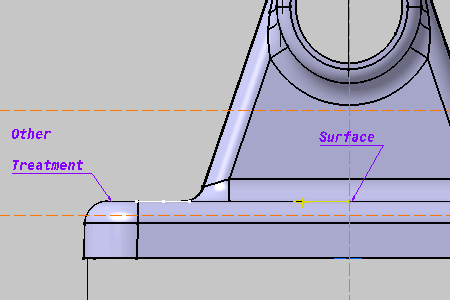

    The graphical properties assigned to the text used as the reference are now copied onto the selected text to be modified.



    The leader color and anchor point are take into account.
