Disabling/Enabling Annotations

You can disable and/or enable annotations in an annotation set.

Before you begin: Open an existing 3D shape.

  1. Click List Annotation Set Switch On/Switch Off

    The Annotation Set Switch On/Off dialog box appears.



    You can see the list of product references contained in the current document:


    • In a 3D shape, the 3D shape itself.

    For each product reference are displayed:


    • The Part Number.
    • The model type.
    • The list of annotation sets.
    • The number of instances.
    • The disable/enable status.

    Functionalities:


    • The Enable or Disable buttons affect the selected product references in the dialog box list.
    • The Enable All or Disable All buttons affect all the product references in the document.

    Tip:

    To disable/enable all annotations of an annotation set at once, right-click the annotation set in the Specification Tree and select Annotation Set Switch On/Switch Off contextual command.

  2. Click Annotation_Part_04 then the Disable button.

  3. Click Apply in the dialog box.

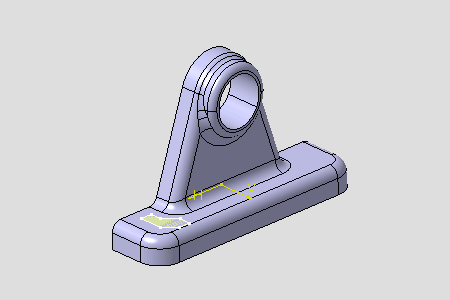

    The annotations are disabled in the geometry.



    The specification tree no longer displays them.



  4. Click Annotation_Part_04 then the Enable button.

    The annotations are enabled in the geometry.



  5. Click OK.
