Dimension Texts Properties

The Dimension Texts lets you modify dimension properties.

Select this tab to access options for:

Prefix - Suffix



Defines a text or a symbol from a dropdown list, as prefix or suffix for the dimension text.

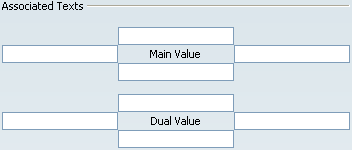

Associated Texts



Defines a text before, after, above or below the dimension text main value and dual value.

Important:

These properties are only available with the Show dual value property of Value properties.

Dimension score options



Defines the score application for the main value and dual value:


  • No score.
  • Value.
  • All.
Important:

These properties are only available with the Show dual value property of Value properties.

Dimension frame options



Defines what the frame does include for the dimension.

Element
Defines what the frame does include for the dimension elements:
  • Value
  • Value + Tolerance
  • Value + Tolerance + Texts
Main
Defines what the frame does include for the dimension group:
  • Main.
  • Dual.
  • Main and dual.
  • Both groups.
