3D Annotation Properties

The 3D Annotation lets you modify standard properties for Coordinates Dimension, Datum, Datum Target, Dimension, Flag Note, Geometrical Tolerance, Note Object Attribute, Roughness or Text.

Select this tab to access options for:

D&T Feature Name



Displays the name of the dimension & tolerancing feature relative to the selected annotation.

Important:

This information is not editable.

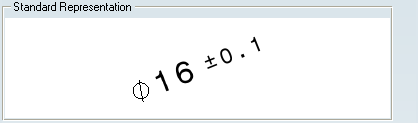

Standard Representation



Displays the annotation representation according to the standard.

Numerical Size Tolerances



Displays the annotation tolerances.

Important:

This information is only displayed for toleranced dimensions and is not editable.
