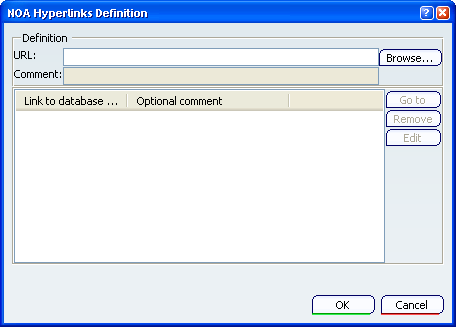

NOA Hyperlinks Definition Dialog Box

This document describes the NOA Hyperlinks Definition dialog box, which appears when you click Create/Define hyperlinks in the Note Object Attribute Reference dialog box.

This dialog box contains controls for:

Related Topics
Note Object Attribute Reference Dialog Box



Definition

URL
Defines the URL associated with the annotation.
Important:

To add/apply a modification in a URL/Comment, press Enter when this field is active.

Comment
Defines a comment for the URL.
Important:

To add/apply a modification in a URL/Comment, press Enter when this field is active.

Link to database component or URL/Optional comment

Displays the list of associated URL/Comment with the annotation.

URLs and comments are displayed in a tooltip when passing the cursor over the annotation in the geometry area.

Important:
  • Links are added and ordered according to their creation order.
  • An edited link will be reorder at the end of the list.
Go to
Opens the selected link with the dedicated application.
Remove
Removes the selected links.
Edit
Edits the selected link. The link is editable in the URL field of Definition.
