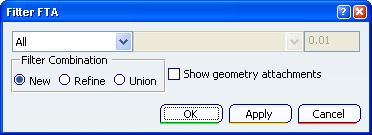

Filter FTA Dialog Box | ||
| ||
Selection
The options in the Selection are as follows:
- All
- Displays all the geometrical
tolerance annotations.
By default,
this option is selected.
- None
- Displays no geometrical tolerance annotation.
- By type
- Non semantic
- By sub-type
- Text, datum, datum targets, geometrical tolerances, Note Object attributes
- By feature
- Part Design or Generative Shape Design feature, or geometrical element.
- By value
- <, > , =, > =, <= functions against a specified value.
- By view
- Filters by view name.
- By capture
- Filters by capture name.
Filter Combination
The Filter Combination contains the following options:
- New
- Filters tolerances according to the current filter.
Important: Each filter modification will reset filtered annotations.
By default,
this option is selected. - Refine
- Filters out
tolerances still filtered with another criteria in relation with.
For example you can filter geometrical tolerances first, then select this option and filter these geometrical tolerances by values.
This is equivalent to the AND Boolean operator.
- Union
- Filters other
annotations with a new criteria in addition to those already filtered.
For example you can filter datums first, then select this option and filter roughnesses.
This is equivalent to the OR Boolean operator.
