Recognizing a Groove

You can recognize a groove by selecting the Groove option in the Feature Recognition dialog box.

  1. Click Manual Feature Recognition .

    The Feature Recognition dialog box that appears displays a list of features you can recognize.

    Important: Using this product release, the features you can recognize are the following ones:
    • Pad
    • Pocket
    • Hole
    • Fillet
    • Chamfer
    • Shaft
    • Groove
    • Boolean
    • Draft

  2. Select Groove.

  3. Select the face as shown.



  4. Click OK to confirm and close the dialog box.

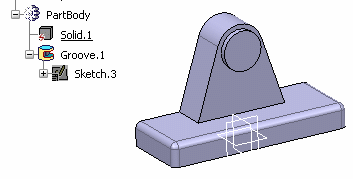

    A groove feature has been recognized. Groove.1 has been added to the specification tree, meaning that it is now possible to edit this feature.
