Recognizing Features Automatically Using the Local Mode

Carrying out automatic feature recognitions in local mode means that you can select a region of a solid by selecting faces in that zone and can run automatic feature recognition only in that region locally. This can be very useful under some circumstances.

This task shows you how to:

Related Topics
More About Recognizing Features Automatically Using the Local Mode

Recognize Features Automatically Using Local Mode

You can recognize feature automatically in local mode by selecting the Local Feature Recognition option in the Feature Recognition dialog box.

  1. Click Automatic Feature Recognition .

    The Feature Recognition dialog box appears.



  2. Select Local Feature Recognition .

    When the Local Feature Recognition option was not available, that could be achieved by:


    • Using manual feature recognition, but then you will have to select and recognize one feature at a time

    • Using automatic feature recognition, but then you will have to run it on the complete solid body, which will unnecessarily take more time and will recognize also feature which are of no interest.

    Both of these approaches cause either considerable selection effort and/or time consumption. Now, Local Feature Recognition makes it very easy:


    • it saves time and effort, when you do not want all features in the 3D shape to be recognized.

    • It also recognizes pads, pockets, grooves, shafts and Boolean features whereas in automatic mode only holes, fillets and chamfers can be recognized.

    Now all feature types are available for recognition:

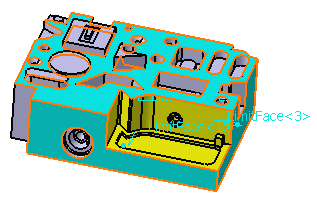

  3. If you want to recognize all features in the yellow region, first click the Chain Up To faces box and then select the three faces as shown in cyan color (they become cyan once selected):



  4. Click the Selected Faces box and select any yellow face.

  5. Select the All option to recognize all features.

    All feature types are then checked in the dialog box.

  6. To improve visibility in the 3D area, deselect Show Labels.



  7. Click OK to compute the result.

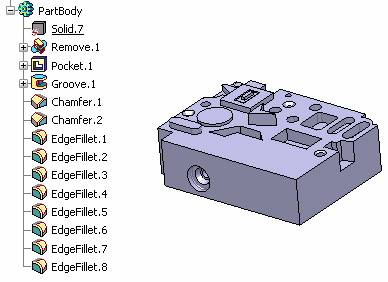

    The features corresponding to the selected purple faces are now recognized.



Use The Internal Loops On Up To Faces Selection Mode

The Internal loops on Up To faces selection mode helps in selecting faces for local feature recognition.

  1. Launch again Automatic Feature Recognition and select the Local Feature Recognition option.

  2. Right-click on the Selected Faces list and select the Internal loops on Up To faces contextual command.

  3. Click the Chain Up To faces box and select the upper face of the pad as shown by cyan color below.

    All the magenta colored faces as shown in the image below get selected.

  4. Deselect the Show Labels option to improve visibility.



  5. Select All to recognize all types of features.

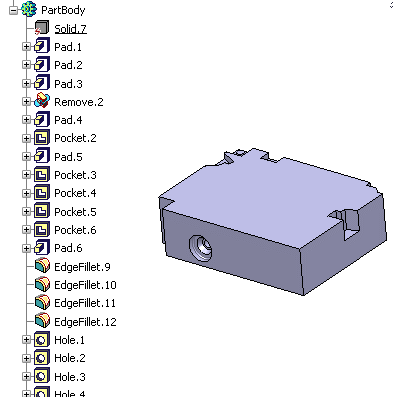

  6. Click OK to obtain this result: all features are recognized.
