In the Electrical Assembly
Design workbench, click Disconnect Devices
or select Tools > Device Connection > Disconnect Devices
to disconnect devices.

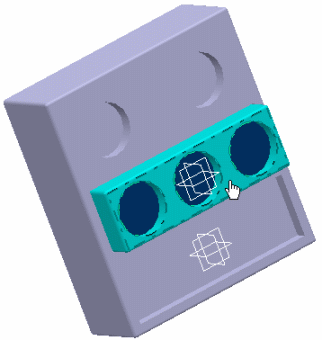

Select the first device you want to disconnect:
Select the second device
that was connected to the first one:
The devices are disconnected.
Note: The device position remains unchanged, however,
since mechanical constraints have been deleted, you can
move the connectors using the compass.
|
