Specification Tree

You can generate a number of features that are identified in the specification tree by different symbols. This section contains the list of specification tree symbols and masks specific to the Wire Harness Flattening workbench. The first example illustrates a typical Tree Structure.

Tree Structure

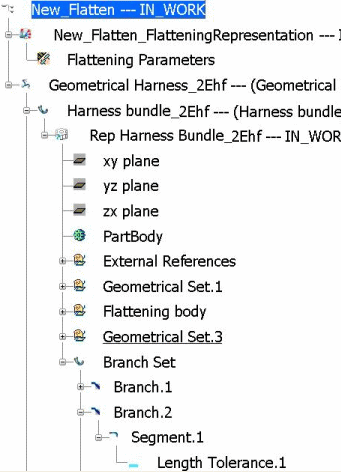

The following picture represents a typical Electrical Harness Flattening Specification Tree.



Representation

A representation is a 3D entity obtained by combining different features.

Flattening Representation

Features

In a flattening context, a feature is a physical portion of a Representation, such as Flattening Parameters, or a behavior added under a Segment, such as Length Tolerance.

Flattening Parameters: a feature within the Flattening Representation.
Length Tolerance: a behavior added under the Segment, within the Flattening Representation.
