Importing Catalogs

Import DELMIA D5 data that is stored in libraries into the V6 catalogs format. All the respective sub-chapters get created based on the level in which the D5 device is present.

  1. Click Convert D5 Library into V6 Catalogs .

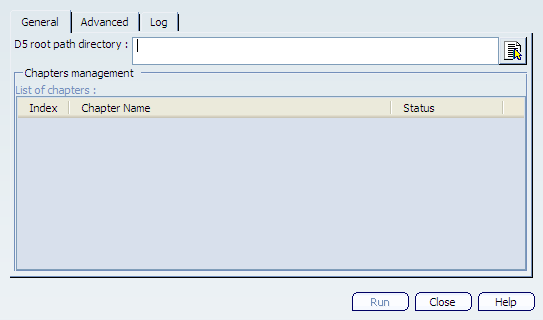

    The Convert D5 library to V6 catalog dialog box is displayed (by default, the General tab is on top):

  2. Select the D5 root path directory (i.e., the path of the D5 library to convert) and click the Run button.

    The conversion occurs and the catalog is created in the database.

  3. Click on the Log tab to see all messages generated during the conversion.

  4. To export the log data to a separate file, select the Export Log in a text file check box.

  5. From the database, search and then open the catalog.

    The catalog appears in the specification tree.
