About the Formula Editor

The Formula editor is displayed when you click Formula in the Reactive Features tool bar. This editor enables you to display the list of parameters, create parameters and formulas and to import external files.

Related Topics
Creating a Formula

Incremental Mode Button

Clicking a feature in the specification tree or in the geometry area displays in the editor only the first level of features right below the selected feature. Below all the parameters related to the Pad.1 and Hole.1 features are displayed. Clicking Pad.1 in the tree (Incremental unchecked) will display the parameters below:

PartBody\Pad.1\FirstLimit\Length

PartBody\Pad.1\SecondLimit\Length

PartBody\Sketch.1\Radius.3\Radius

Checking Incremental () restricts the list of parameters to the one below:

PartBody\Pad.1\FirstLimit\Length

PartBody\Pad.1\SecondLimit\Length

Note: Note that when you click this button, the editor does not recognize parameters any longer. So if you enter the name of a parameter into the editor without selecting it in the specification tree or in the geometry, it will not be recognized.

Filter Name

This filter allows you to narrow the list of displayed parameters specifying a substring. If you specify *Limit* as filter, only the parameter with Limit as sub-string will be displayed, for example:

PartBody\Pad.1\FirstLimit\Length

PartBody\Pad.1\SecondLimit\Length

PartBody\Hole.1\HoleLimit.1\Depth

PartBody\Hole.1\HoleLimit.1\Angle

Filter Type

This filter allows you to restrict the list of parameters by specifying a type. Selecting User parameters will display only the parameters created by New Parameter of type. Selecting Hidden parameters will display only the list of parameters which have been declared as hidden by selecting Hide from the value field contextual menu. Hide is only available for user parameters.

Parameters List

Basically, the parameter list displays the parameters related to the feature selected either in the specification tree or in the geometry area. If no feature has been selected, all the document parameters are displayed. The dialog box being open, you can select a given feature either in the tree or in the geometry area and display its related parameters.

You can restrict the list of displayed parameters by using the Filter Name and Filter Type capabilities as well as Incremental.

Edit name or value of the current parameter Field

This field displays the parameter which has been selected from the parameter list. The value field on the right-hand side is grayed out when the parameter is constrained by a formula, a design table or any type of relations. Right-clicking this value field provides you with a number of commands whereby you can refine the parameter definition.

New Parameter of type Button

This button allows you to create a user parameter. This user parameter can be assigned a single value or multiple values (akin to the enum idea).

Delete Parameter Button

This capability operates only for user parameters.

Delete Formula Button

When a parameter which is constrained by a formula is selected from the parameter list, clicking Delete Formula removes the formula.

Import Button

This capability allows you to import parameters and parameter values from a text file or from an Excel file (Windows).

Add Formula Button

When you create a formula, you specify that a parameter, whatever its type, is to be constrained by a relation. Clicking Add Formula displays the Formula editor.



Incremental Mode Button

See explanation above.

Language Browser Button

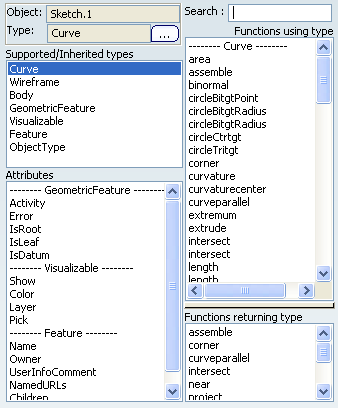

When clicked, this button lets you access a browser of types. To use this browser, you can either select the objects you want to work with in the geometry or click the ... button to select the type in the list.


  • The Supported/Inherited types field provides you with a list of the types supported by the selected type and of the types that the selected type inherits from.
  • The Attributes field lists the possible attributes of the types and those of the supported and inherited types.
  • The Functions using type field lists the functions and methods whose first argument is a type of the Supported/Inherited types list.
  • The Functions returning type field lists the functions and methods returning the selected type. For more information about the types exposed in this browser, see the Reference Section in the Knowledge Advisor User's Guide.

URLs and Comment Button

Enables you to associate a URL or a comment to the formula. For more information, see Knowledge Advisor User's Guide: Associating URLs & Comments with Parameters and Relations.

Erase Button

Enables you to empty the editor.

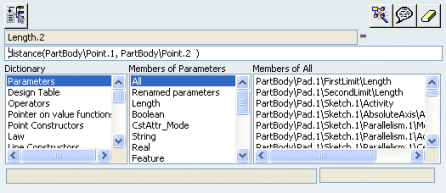

Dictionary

To help you write a formula, the formula editor provides you with a dictionary. This dictionary exposes the list of parameters and functions you can use to define a formula. Depending on the category of objects to be referred to in the formula, the dictionary is divided into two or three parts. To insert any definition in the formula editor, double-click the object either in the dictionary or in the tree. If you double-click a function in the dictionary, its signature is carried forward to the formula editor. Only the argument definitions are missing.

Analysis operators Circle Constructors Design Table Methods
Direction Constructors Evaluate Method Line Constructors
List Mathematical Functions Measures
Operators Part Measures Plane Constructors
Point Constructors String Surface Constructors
Wireframe Constructors

The formula which is created is displayed in the parameters list as well as its activity.
