Introduction
To enable them in Part Bodies, check Enable hybrid design for parameters and relations inside part bodies and bodies in Infrastructure > Part Infrastructure > Part Document.
Linearity Rules
Knowledgeware features (except parameters) located in a linear container must comply with linearity rules. When creating, modifying or moving a Knowledgeware feature, you are warned if:
- The rule, check, equivalent dimensions feature or formula is
misplaced but an appropriate location can be found. In this case,
you are asked if:
- the relation should automatically be located at this location (if different locations can be found, the default location will be the highest in the tree),
- the relation should be placed in the Relations Set (outside the linear container),
- you want to go back to the editor.
- if the rule, check, equivalent dimensions feature or the formula
is misplaced and no appropriate location can be found, you are asked
if:
- the relation should be placed in the Relations Set (outside the linear container),
- you want to go back to the editor.
This behavior guarantees the "integrity" of the Ordered Geometrical Set (integrity meaning the linearity of all the features involved except parameters). If a problem occurs, the default behavior consists in positioning the relation or the parameter in the Relations/Parameters Set.
Creating a Knowledgeware Feature

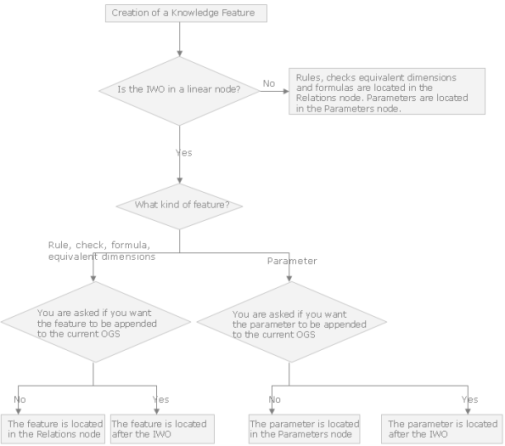

New Knowledgeware features can be directly created in linear containers.
 |
Note: If the In Work Object (IWO) is a linear container, the new object is directly appended at the end of this container.
Modifying a Feature
If you modify the content of a rule, check, equivalent dimensions feature or of a formula, the content is checked to ensure that there is no incompatibility with linear rules. If an inconsistency is detected, an error message is displayed. This behavior guarantees the integrity of the linear container.
Copy/Paste Mechanism

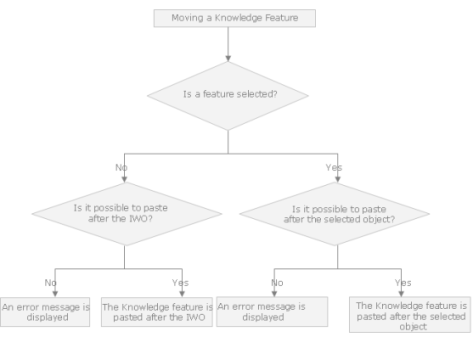

When moving a feature using the Copy/Paste mechanism, if this feature is selected, an error message is displayed if you cannot paste the Knowledgeware feature after the selected object. If this feature is not selected and if it is not possible to paste the Knowledgeware feature after the In Work Object (IWO), an error message is displayed. If it is possible, the Knowledgeware feature is pasted after the In Work Object (IWO).
 |
Reorder Mechanism
| The Reorder mechanism for Knowledgeware features is available inside linear containers only. |
Drag and Drop Mechanism

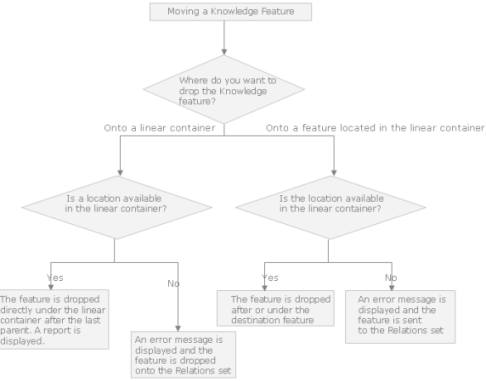

When moving a Knowledgeware feature using the Drag and Drop mechanism, there are 2 alternatives:- If the feature is dropped onto a feature located in the linear container, and if you can drop this feature after the destination feature, the Knowledgeware feature is dropped after or under the destination feature. If you cannot drop the Knowledgeware feature after the destination feature, an error message is displayed.
- If the feature is dropped onto a linear container, has at least one parent feature in the Ordered Geometrical Set and you can drop it after the last parent feature, the Knowledgeware feature is dropped after the parent feature. If you cannot drop the Knowledgeware feature after the last parent feature, an error message is displayed. If the Knowledgeware feature does not have any parent feature in the linear container, it is dropped at the end of the linear container.
 |
Specific Cases
If a Knowledgeware feature is impacted or impacts a feature which is modified by another feature, the rerouting is automatic.
For example if a rule contains a reference to a line and a split is performed on this line, the reference in the rule is automatically changed to the new feature split if this rule is located after the split in the tree. On the contrary, if the feature split is deleted, the rule changes the reference to the parent feature of the split, which is the line. If the split is moved after the rule in the features tree, the rule changes the reference to the line.
Important:
|
Knowledgeware Features and Power Copies
If you create a Power Copy containing a linear container with Knowledgeware features, the structure remains the same after instantiating this Power Copy. Note that the option Enable hybrid design for parameters and relations inside part bodies and bodies must have the same value when creating and instantiating the Power Copy. This is also true if Knowledgeware features reference other objects outside the Ordered Geometrical Set.
Limitations
You cannot move or include all features to a linear container.
Reactions and Other Knowledgeware Features
Reactions and other Knowledgeware features are not included to the linearity mechanism.
Moving a Knowledgeware Feature without the Related Objects
A Knowledgeware feature can be moved to a linear container without its inputs (the objects it is linked to). For example, if a formula is moved to a linear container without the parameter valuated by this formula, no error/warning is displayed. A linear container is not an entity which should remain independent from the other containers of the Part/Product. In some cases, the relation moved can lose the links to the related objects when copying and pasting it or when dragging and dropping it.
