Symmetry Properties Dialog Box

The Symmetry Properties dialog box appears when you select Symmetry Properties in Assembly Symmetry context.

This dialog box contains controls for:

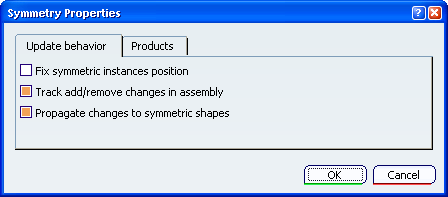

Update behavior

Fix symmetric instances position
Defines whether symmetric instances are fixed with a constraint.
Track add/remove changes in assembly
Defines whether the structure associativity is propagated in the symmetric product.
Propagates changes to symmetry shapes
Defines whether the geometry associativity is propagated in the symmetric product.

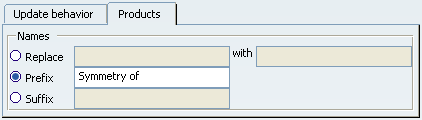

Products

Defines the original product name modifications in the symmetric product.



The Names contains the following options:

Replace
Replaces a string in existing names with another one.
Prefix
Adds a prefix to existing names.
Suffix
Adds a suffix to existing names.
